Atlas BP12000X 12,000 Lb. Capacity Heavy-Duty Baseplate 2-Post Car Lift

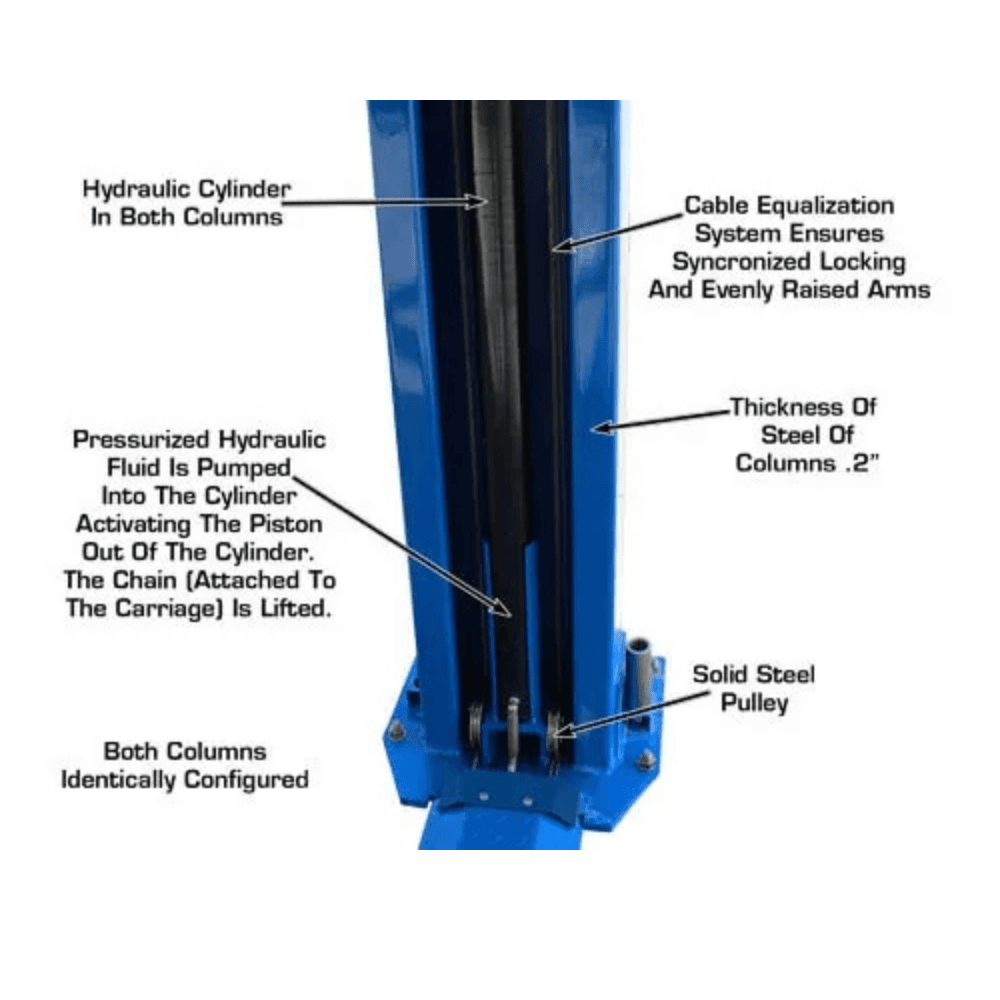

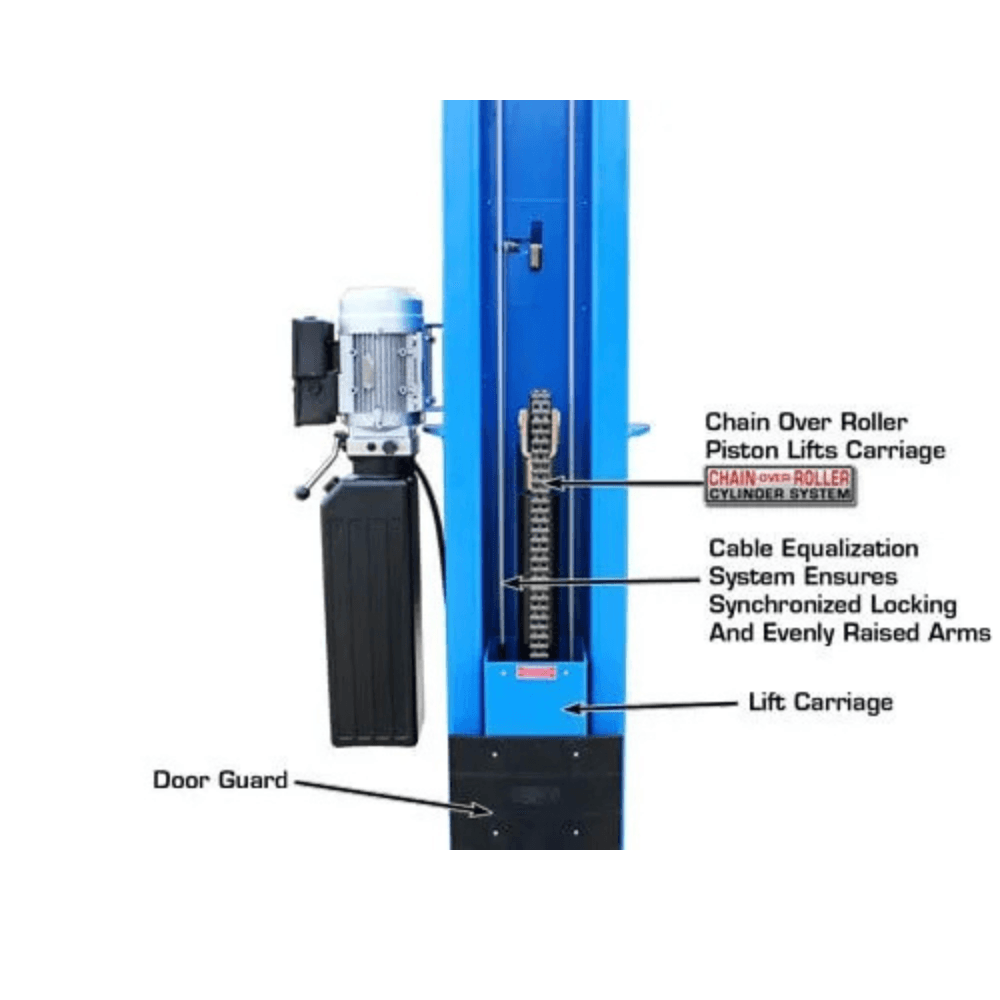

The Atlas BP12000X is a commercial-grade, heavy-duty baseplate two-post lift engineered for professional automotive garages with low ceilings. Boasting a massive 12,000 lb. lifting capacity, this open-top lift is perfect for servicing large passenger trucks, trailers, and commercial vans. It features 3-stage symmetric arms, oversized columns, a single-point lock release, and dual chain-over hydraulic cylinders for maximum lifting power and stability.

\n
• Lifting Capacity: 12,000 lbs.
\n

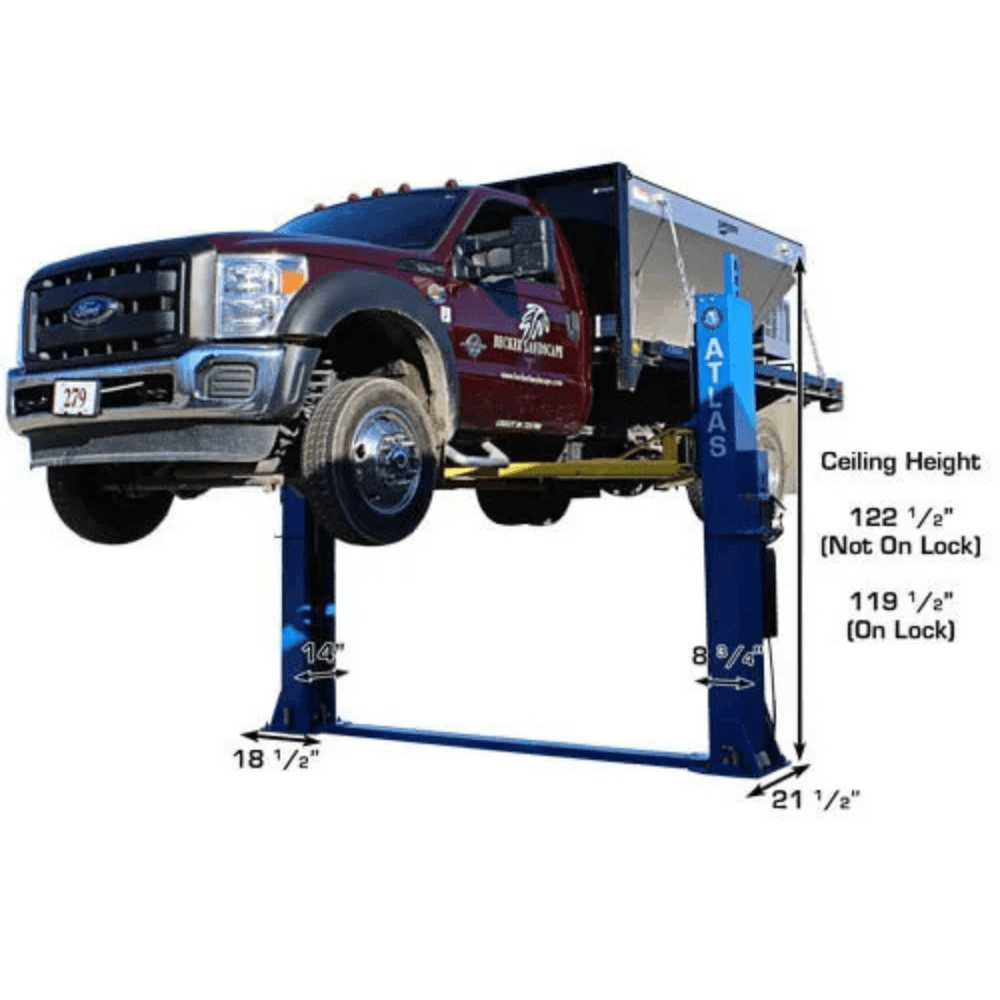

• Overall Column Height: 122.5 in. (10 ft. 2.5 in.)
\n

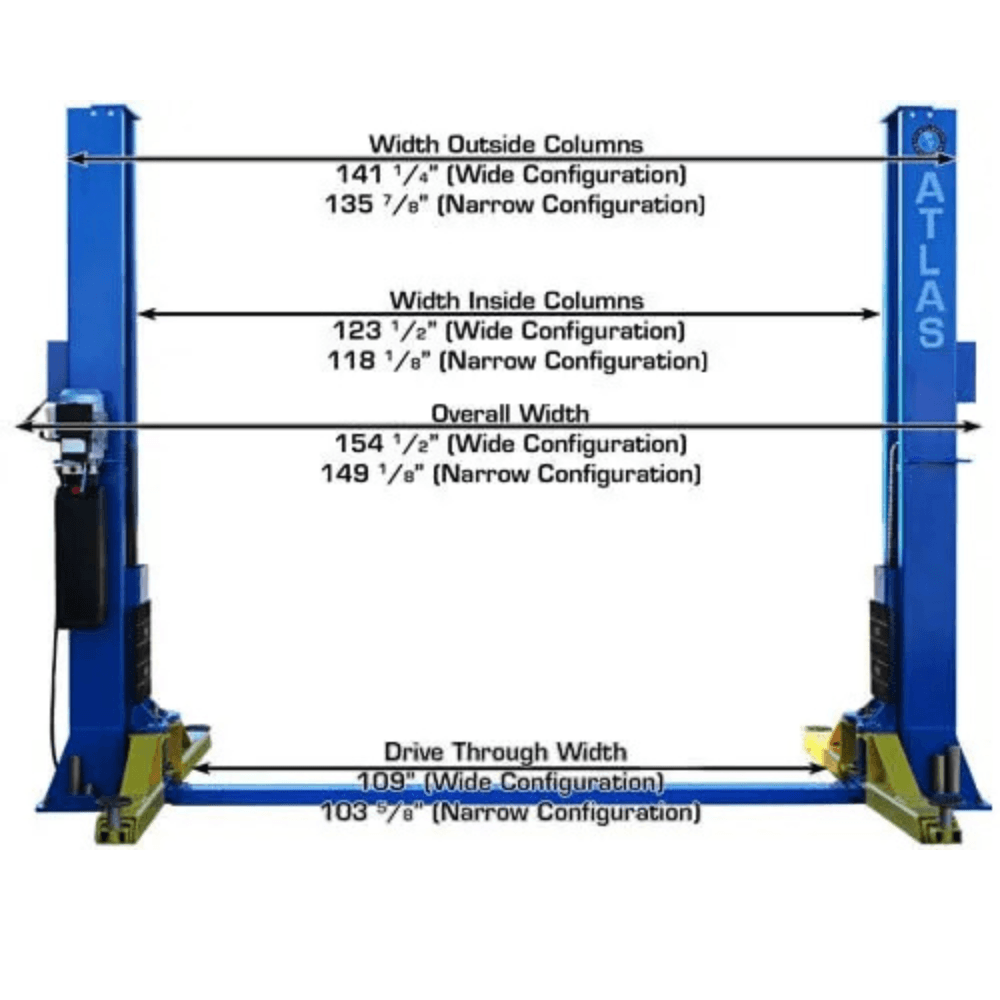

• Overall Floor Width: Adjustable 149.375 in. or 154.5 in.
\n

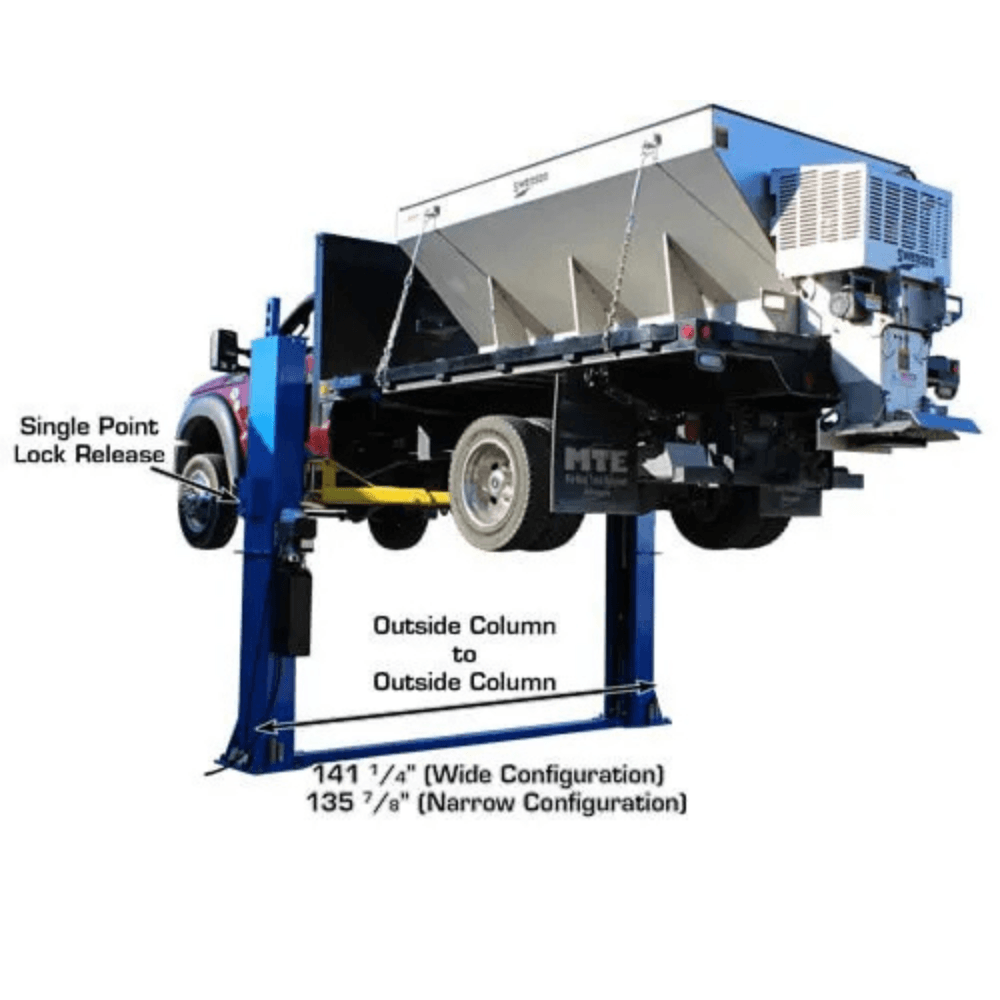

• Outside Column Width: 135.875 in. or 141.25 in.
\n
• Maximum Lift Height (Without Adapters): 77.5 in.
\n
• Maximum Lift Height (With Adapters): 88.5 in.
\n
• Minimum Arm Height: 4 in.
\n
• Inside Column Width: 118.125 in. or 123.5 in.
\n

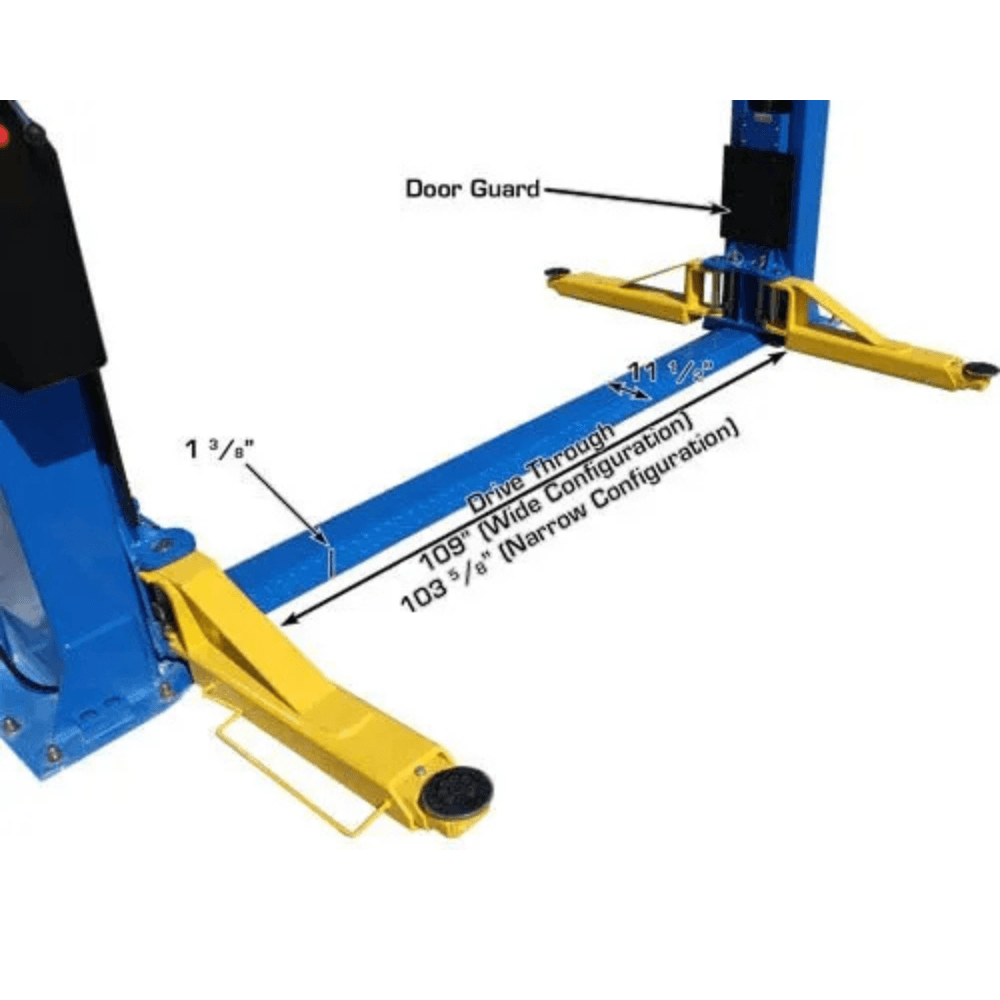

• Drive-Thru Width: 103.625 in. or 109 in.
\n

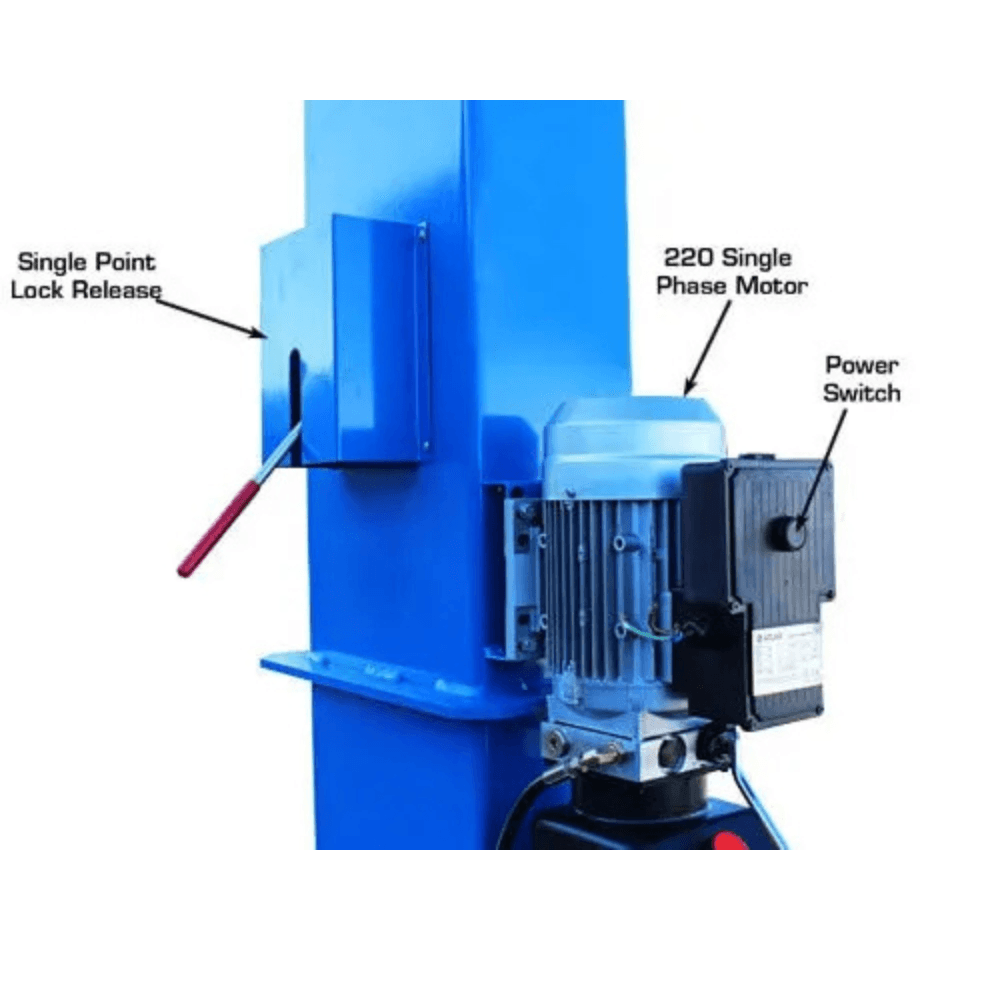

• Power Unit: 220V Single Phase (30 Amp breaker recommended)
\n
• Included Adapters: Free 12-piece truck adapter set
\n
• Shipping Weight: 2,130 lbs.
