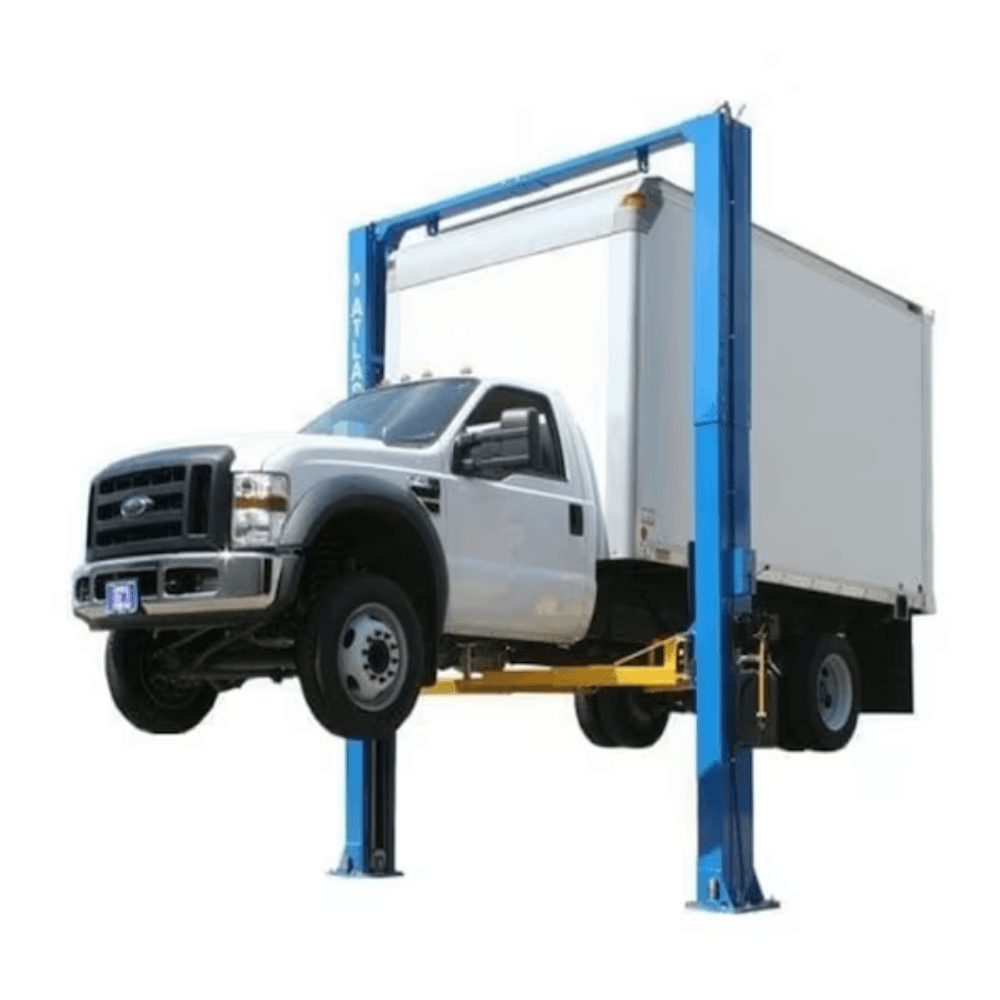

Atlas PV12PX 12,000 Lb. Capacity Heavy-Duty Overhead 2-Post Car Lift

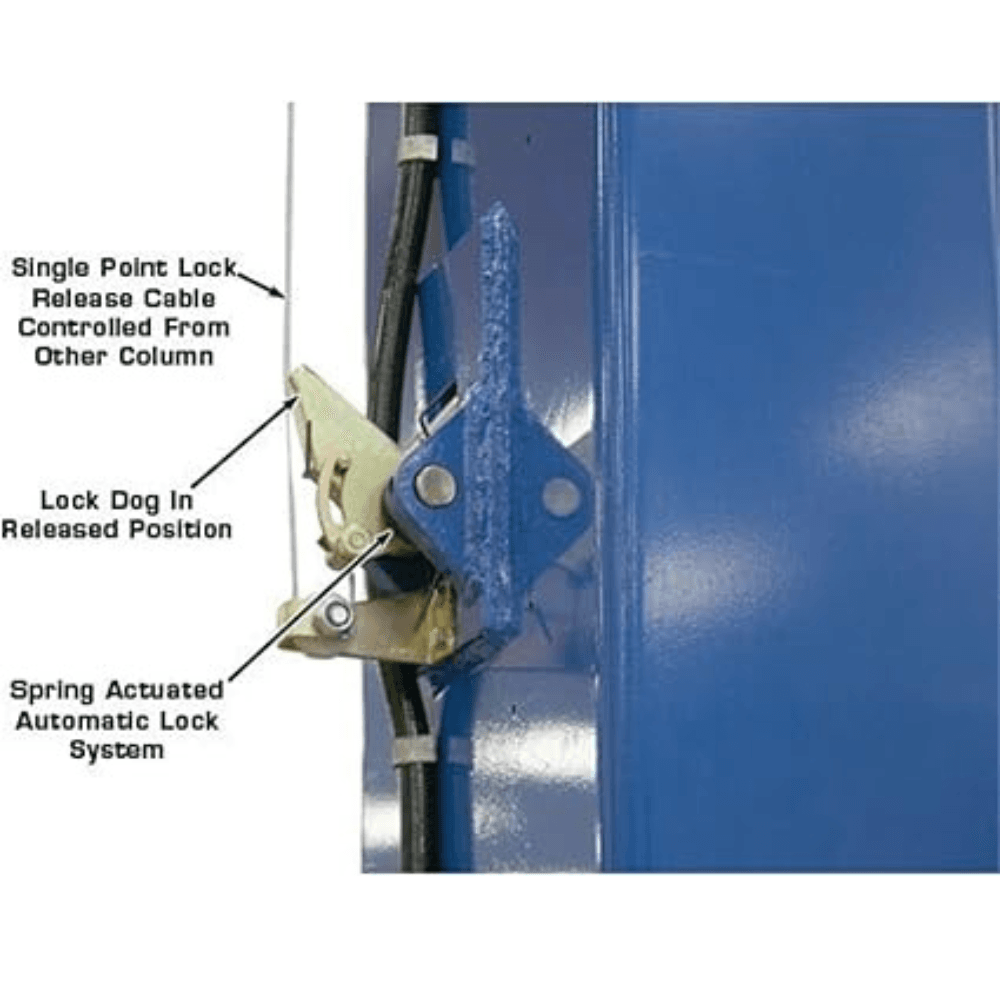

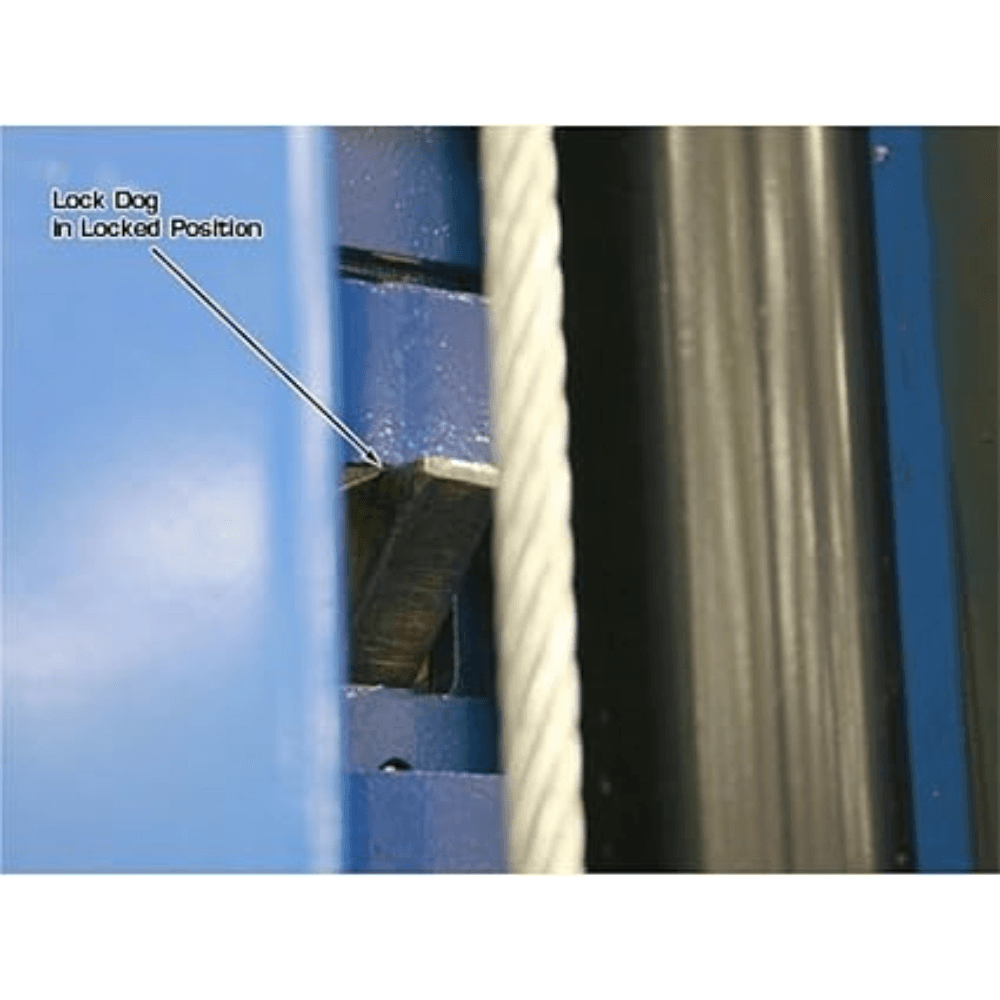

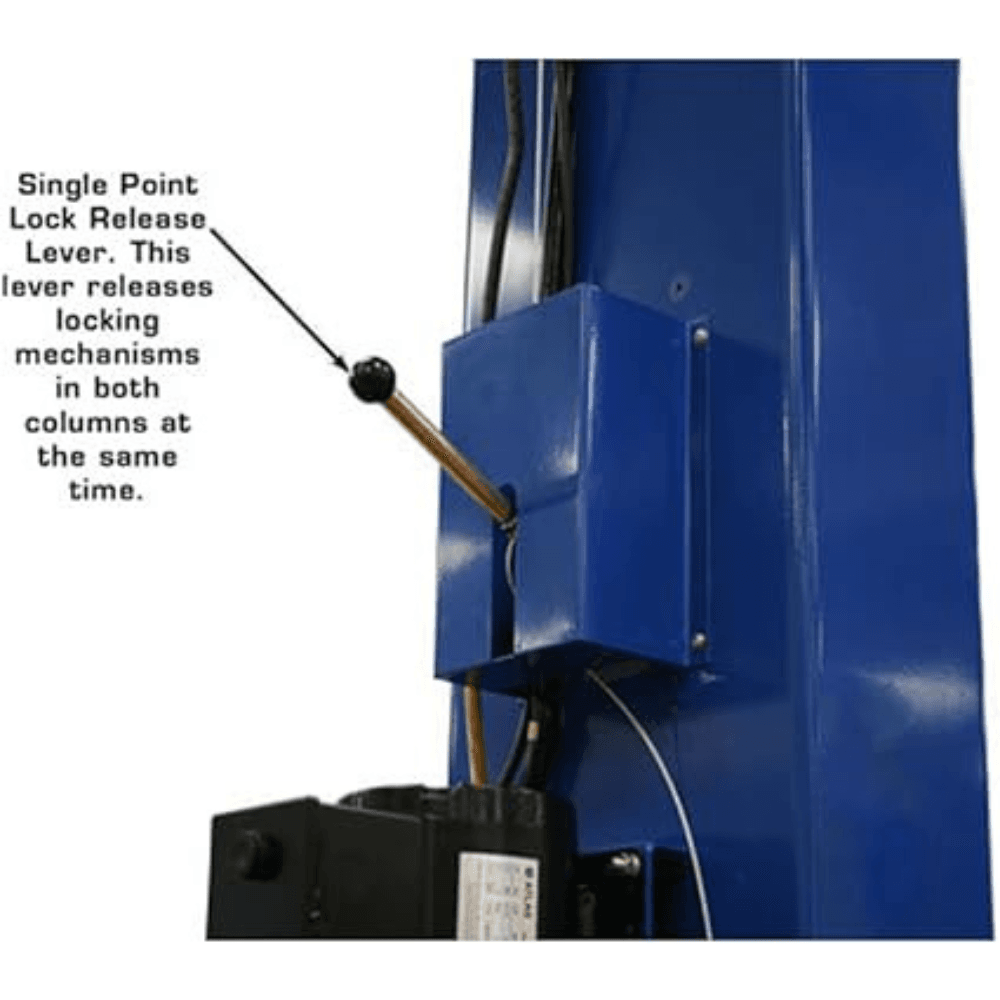

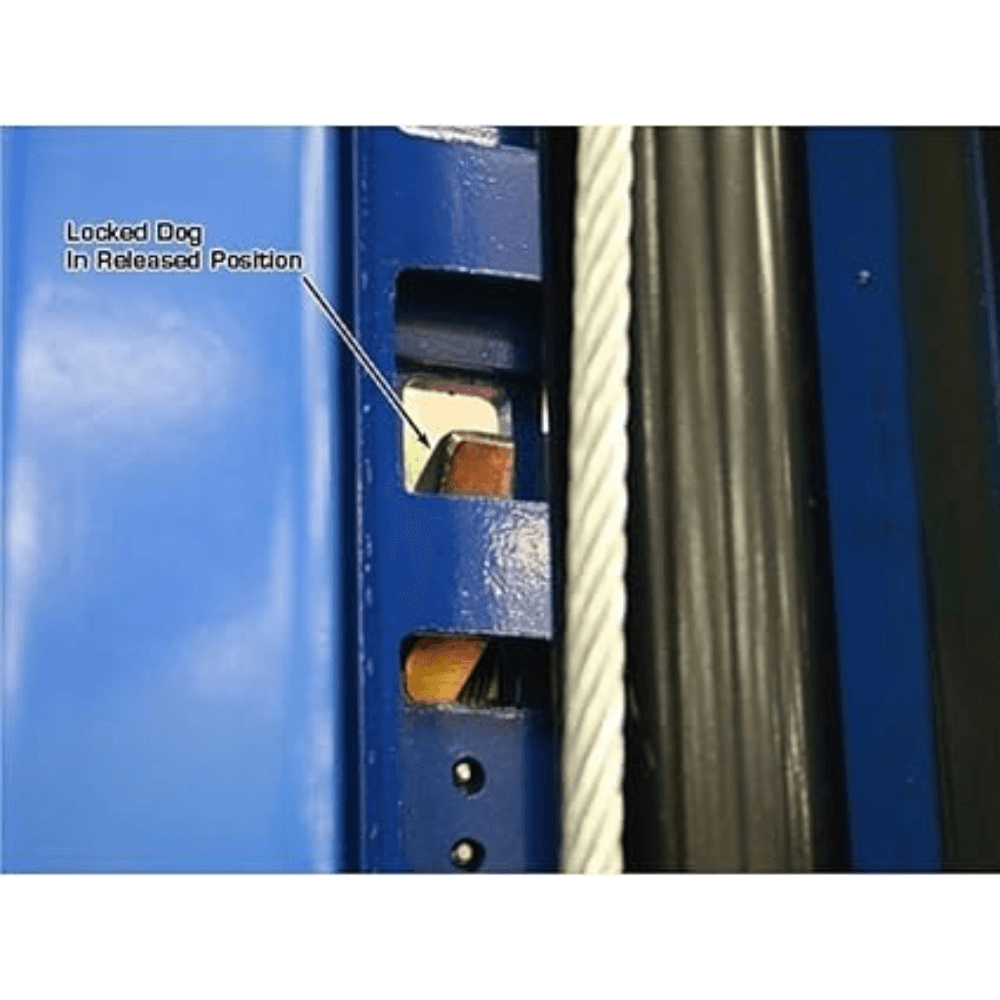

The Atlas PV12PX is a heavy-duty, commercial-grade overhead two-post lift engineered for servicing large passenger trucks, commercial vans, and long-wheelbase vehicles. Featuring a robust 12,000 lb. capacity, extra-wide column spacing, and direct-drive cylinders, this lift delivers exceptional durability and efficiency. Adjustable height settings, symmetric arms, automatic restraints, and carriage door guards ensure safe and secure operation in high-volume repair shops.

\n
• Lifting Capacity: 12,000 lbs.
\n
• Overall height: Standard 165 in. or 177 in.
\n
• Low Height Setting: 150 in. (requires extra cables)
\n
• Overall Floor Width: 153 in.
\n
• Outside Column Width: 139.125 in.
\n
• Maximum Lift Height (Without Adapters): 72.25 in.
\n
• Maximum Lift Height (With Adapters): 81 in.
\n
• Minimum Arm Height: 4.5 in.
\n
• Inside Column Width: 123 in.
\n
• Drive-Thru Clearance: 109 in.
\n
• Power Unit: 220V Single Phase (30 Amp breaker recommended)
\n
• Included Adapters: Free 12-piece truck adapter set
\n
• Shipping Weight: 2,160 lbs.
