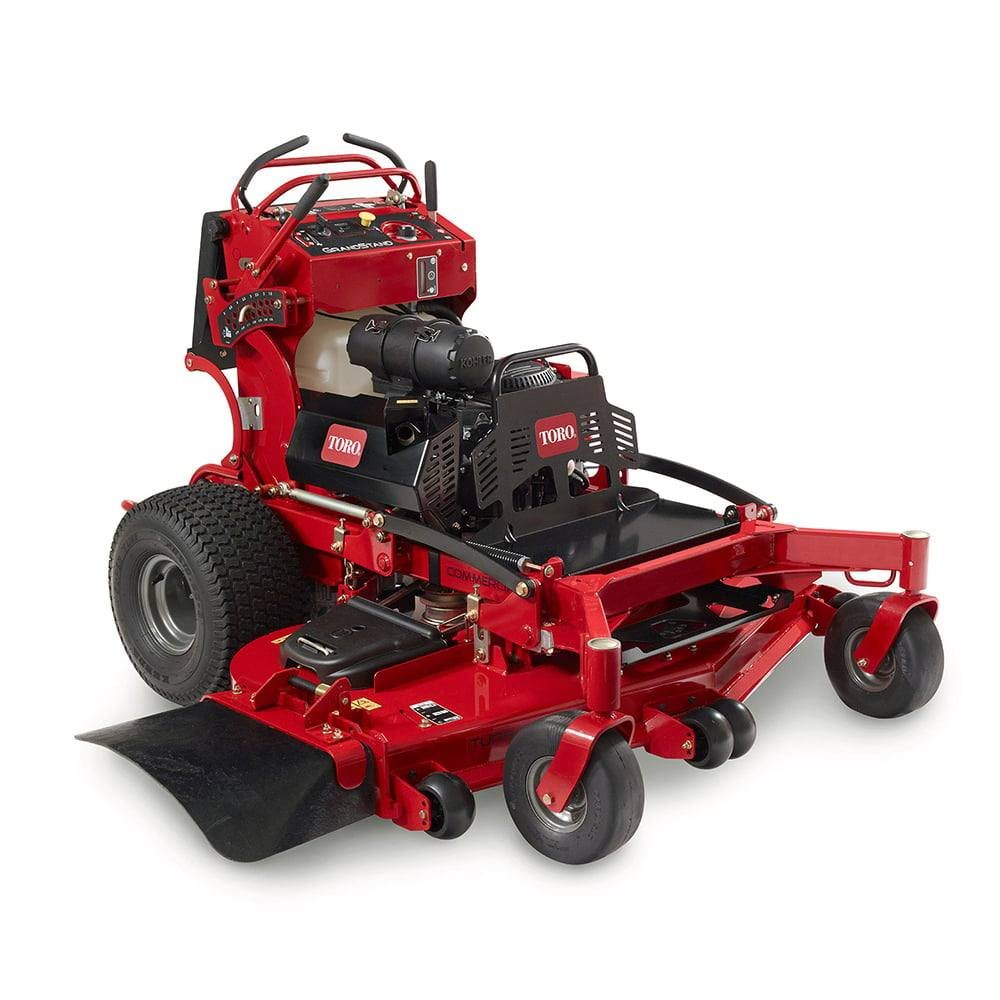

Toro GrandStand 72509 23.5hp Kawasaki FX Engine 60″ FAB Deck Mower

Toro GrandStand 72509 23.5hp Kawasaki FX Engine 60″ FAB Deck Mower

$3,999.00 USD
$5,999.00 USD $3,999.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
\n
\n
\n
\n
Toro GrandStand 72509 23.5hp Kawasaki FX Engine 60″ FAB Deck Mower (Local Pickup Only)
\n
\n
\n
\n
    \n
  • Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
    • \n
  • Foldable operator platform instantly converts the machine to a walk-behind.
    • \n
  • Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
    • \n
  • Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
    • \n
  • No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
    • \n
  • Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
    • \n
  • The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
    • \n
  • 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
    • \n
  • A wide stance and optimal balance enhance hillside stability and control.
    • \n
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
    • \n
\n

Specifications

\n
\n
\n
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Adjustable Discharge BaffleStandard, Tools-Free
Air FilterHeavy-Duty Canister Air Cleaner
Anti Scalp WheelsStandard
Blade Tip Speed18,500 ft/min / 5,638 m/min
Blades0.204 in. (0.5 cm) heat-treated steel
Box Dimensions90 in. x 70 in. x 52 in. / 228.6 cm x 117.8 cm x 132.1 cm
CARB CompliantNot CARB Compliant
Carrier Frame3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
Caster Tires11 in. x 4 in. – 5 in. (27.9 cm x 10.2 cm – 12.7 cm) Flat-Free Semi-Pneumatic
ClutchElectromagnetic
Comfort PlatformFoldable Operator Platform with Suspension
ControlsTwin lever
Deck Design7-gauge 60″ (152.4 cm) TURBO FORCE® w/bull-nose bumper
Deck Material7 Gauge Steel
Deck Size60 in / 152 cm
Discharge ChuteRubber
Drive SystemUnitized Pumps 10cc rev Wheel Motors 10 cir
Drive Tires20 in. x 10.5 in. – 8 in. (50.8 cm x 26.7 cm – 20.3 cm)
Engine23.5 hp* Kawasaki FX730V 726 cc
Engine BrandKawasaki
Engine Displacement (cc)726 cc
Engine Horsepower23.5 hp
Forward Ground/Transport SpeedUp to 10.0 mph / 16.0 kph
Front BumperReinforced Bull-Nose
Fuel Capacity10.5 gal. / 39.7 L / 42 Qt.
Fuel TypeGasoline
Height of Cut1.5 – 5.0 in. / 3.8 – 12.7 cm
Hour MeterStandard
Hydraulic FluidPremium synthetic
Product TypeStand-On Mowers
Product UseCommercial
Spindle BearingsMaintenance-free
Spindle Housing9 in / 22.9 cm Diameter Cast Aluminum
Start TypeElectric
Steering ControlsTwin Lever
Weight960 lbs / 435.4 kg
\n
\n
\n
\n

Disclaimer

\n
*23.5 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
