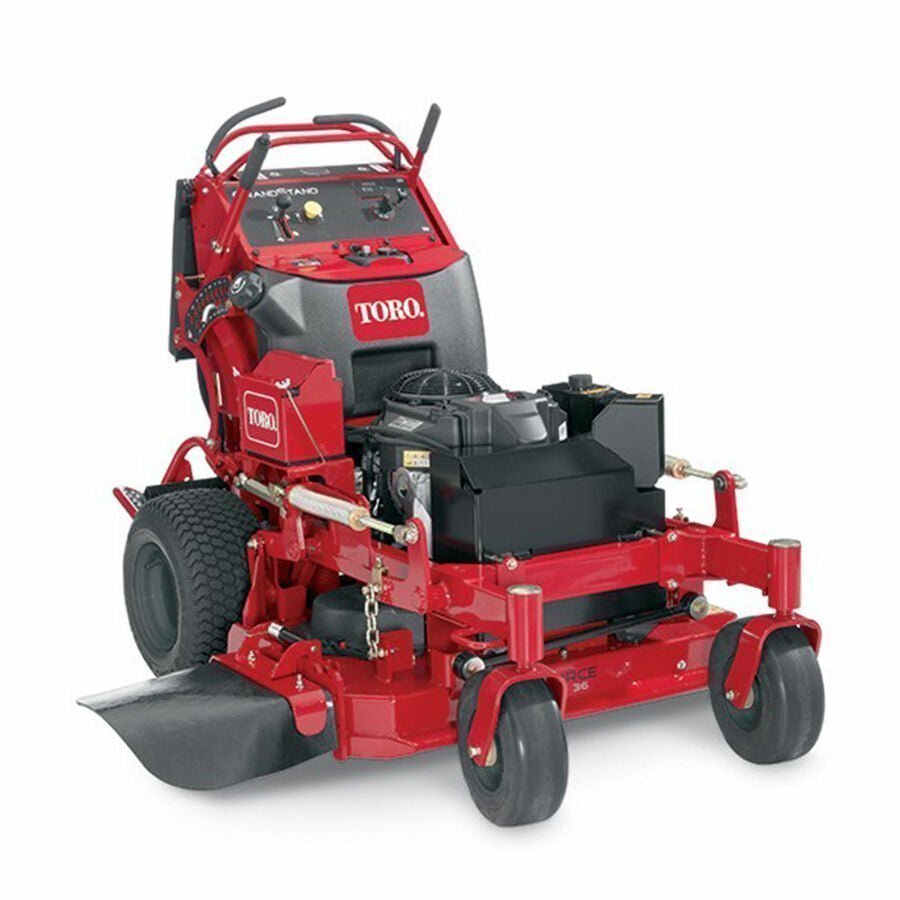

Toro GrandStand 74534 15hp Kawasaki FS Engine 36″ FAB Deck Mower (Local Pickup Only)
\n
\n
\n
    \n
  • Foldable operator platform instantly converts the machine to a walk-behind.
    • \n
  • Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
    • \n
  • With hefty cast iron spindles including maintenance free bearings plus only annual grease points, there will be less need for routine maintenance. That means less time spent off your mower and more time generating profits with it.
    • \n
  • Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
    • \n
  • Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
    • \n
\n

Specifications

\n
\n
\n
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Adjustable Discharge BaffleStandard
Blade Tip Speed18,500 ft/min / 5,638 m/min
Blades0.204 in. (0.5 cm) heat-treated steel
Box Dimensions77.25 in. x 49 in. x 52 in. x 196.2 cm x 124.5 cm x 132.1 cm
CARB CompliantNot CARB Compliant
Carrier Frame3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
Caster Tires11 in. x 4 in. – 5 in. (28 cm x 10.2 cm – 12.7 cm) Flat-Free Semi-Pneumatic
ClutchElectromagnetic
Comfort PlatformFoldable Operator Platform with Suspension
ControlsTwin lever
Deck Design7-gauge 36″ (91 cm) TURBO FORCE® with bull-nose bumper
Deck Material7 Gauge Steel
Deck Size36 in / 91 cm
Discharge ChuteRubber
Drive SystemPumps 10cc rev Wheel Motors 10 cir
Drive Tires18 in. x 8.5 in. – 8 in. (46 cm x 22 cm – 20 cm)
Engine15 hp* (11kW) Kawasaki® FS541V 603 cc
Engine BrandKawasaki
Engine Displacement (cc)603 cc
Engine Horsepower15.0 hp
Forward Ground/Transport SpeedUp to 8.0 mph / 12.8 kph
Front BumperReinforced Bull-Nose
Fuel Capacity7.8 gal. / 29.5 L / 31.2 Qt.
Fuel TypeGasoline
Height of Cut1.0 – 5.0 in. / 2.5 – 12.7 cm
Hour MeterStandard
Hydraulic FluidPremium synthetic
Number of Blades3
Product TypeStand-On Mowers
Product UseCommercial
Spindle BearingsMaintenance-free
Spindle Housing9.375 in / 23.8 cm Diameter Cast Iron
Start TypeElectric
Steering ControlsTwin Lever
Weight837 lbs / 379.7 kg
\n
\n
\n
\n

Disclaimer

\n
*The gross horsepower of these engines was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAEJ2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.
